Part No.: 53049880022
Reference#: 53049880022, 5304-988-0022, 5304 988 0022，06A145704P, 06A145704PX, 06A145704PV，53049700022, 5304-970-0022, 5304 970 0022

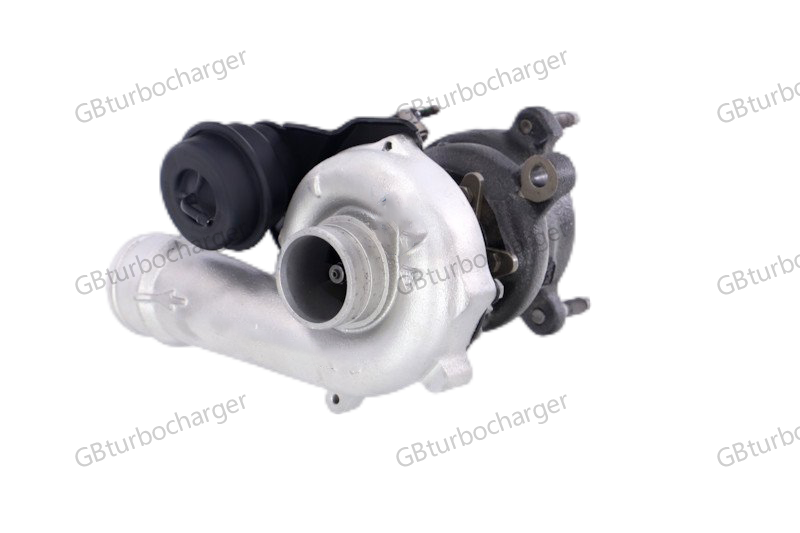

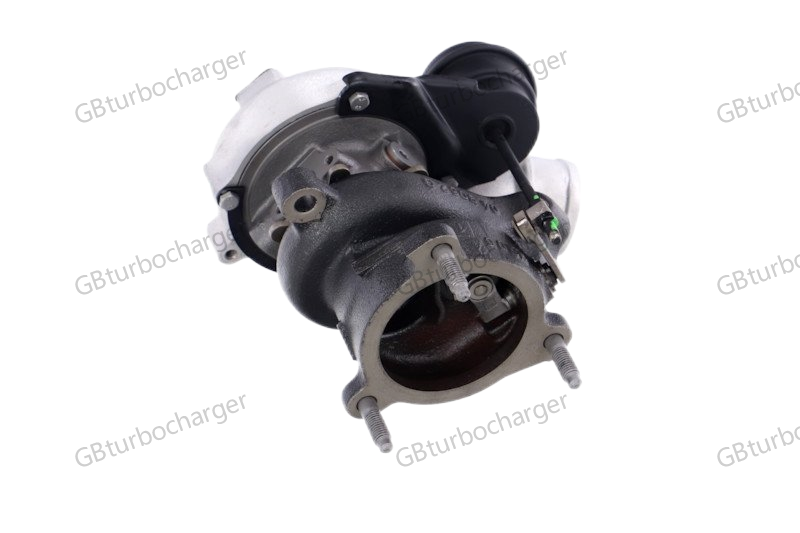

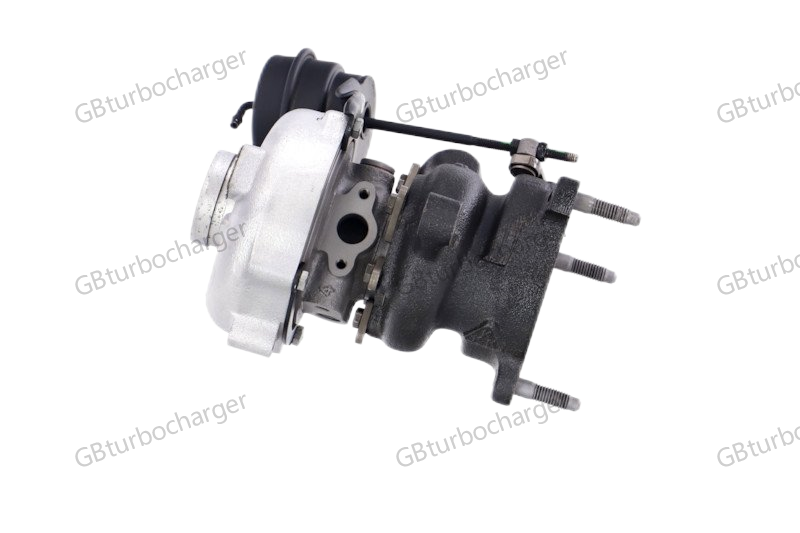

Turbo Model: K04
Engine: 1.8L-5V
Application: 1999-2012 Audi S3, TT & 2002-03 Seat Leon 1.8 T Cupra R with AMK Engine
MOQ: Mainly for Wholesale
Fitment Vehicle
*1999-12 Audi S3 1.8 T with AMK Engine
*1999-12 Audi TT 1.8 T (8N) with AMK APX Engine
*2002-03 Seat Leon 1.8 T Cupra R with AMK Engine
| Item Weight | 13.3 pounds |
| Product Dimensions | 9.06 x 7.06 x 10.24 inches |
| Condition | Brand New |
| Fitment Type | Direct Replacement |
| Manufacturer Part Number | 53049880022 06A145704P |
| Package | Gaskets and Seals Included, Syringes Included |
Features:
*Applicable Vehicles:1999-12 Audi S3, TT & 1999-12 Audi S3
*Reference Part Numbers:53049880022, 06A145704P, 53049700022, 06A145704PX
*Function: To increase the air intake of the engine, thereby increasing the power and torque of the engine, making the car more vigorous. When an engine is equipped with a turbocharger, its maximum power can be increased by 40% or even higher than when it is not installed.
*Turbocharger is an important part used to increase engine power and reduce exhaust emissions. Due to improper use and maintenance, failures are prone to occur, causing the engine to not work normally, and it must be overhauled and replaced in time.
*WARRANTY: 1 Year (12 Months) Unlimited-mileage Quality Guarantee
Related Parts:
| Part Name | GB No. | Part Number |
| CHRA | GB-1010-CHRA | 53047100507 (5304-710-0507)(1302004907, 1000030113) |
| Compressor housing | 15001010 | |
| Turbine housing | 14001010 | |
| Bearing housing | 13001010 | 53041500015 (53041500009, 53041500006, 53041500017)(1302003460, 1900011078) |
| Shaft wheel | 11011010 | 53041205015 (53041202100, 53041202101, 53041205004, 53041205008, 53041205010, 53041205018, 53041206503, 53041206506, 53041206511)(1302004437, 1100030064) |
| Compressor wheel | 53041232015 (53041232013, 53041232203)(1302003411, 1200016114) | |
| Back plate | 53041515708 (1302003306, 1300016033) | |
| Actuator | 58251104082 (2061016083) | |
| Repair kit | 53037110000 (1302003752, 5000040005) |
